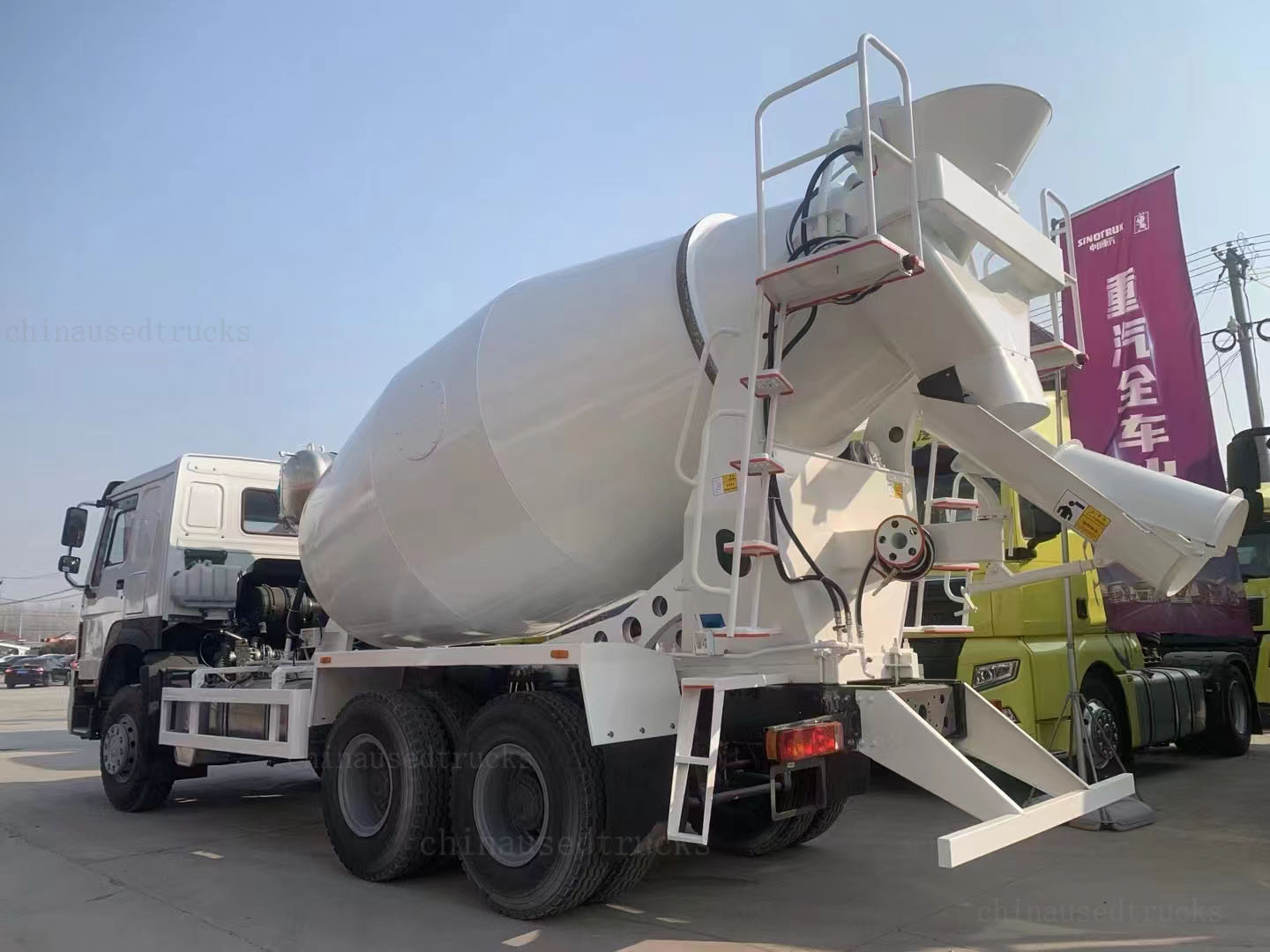

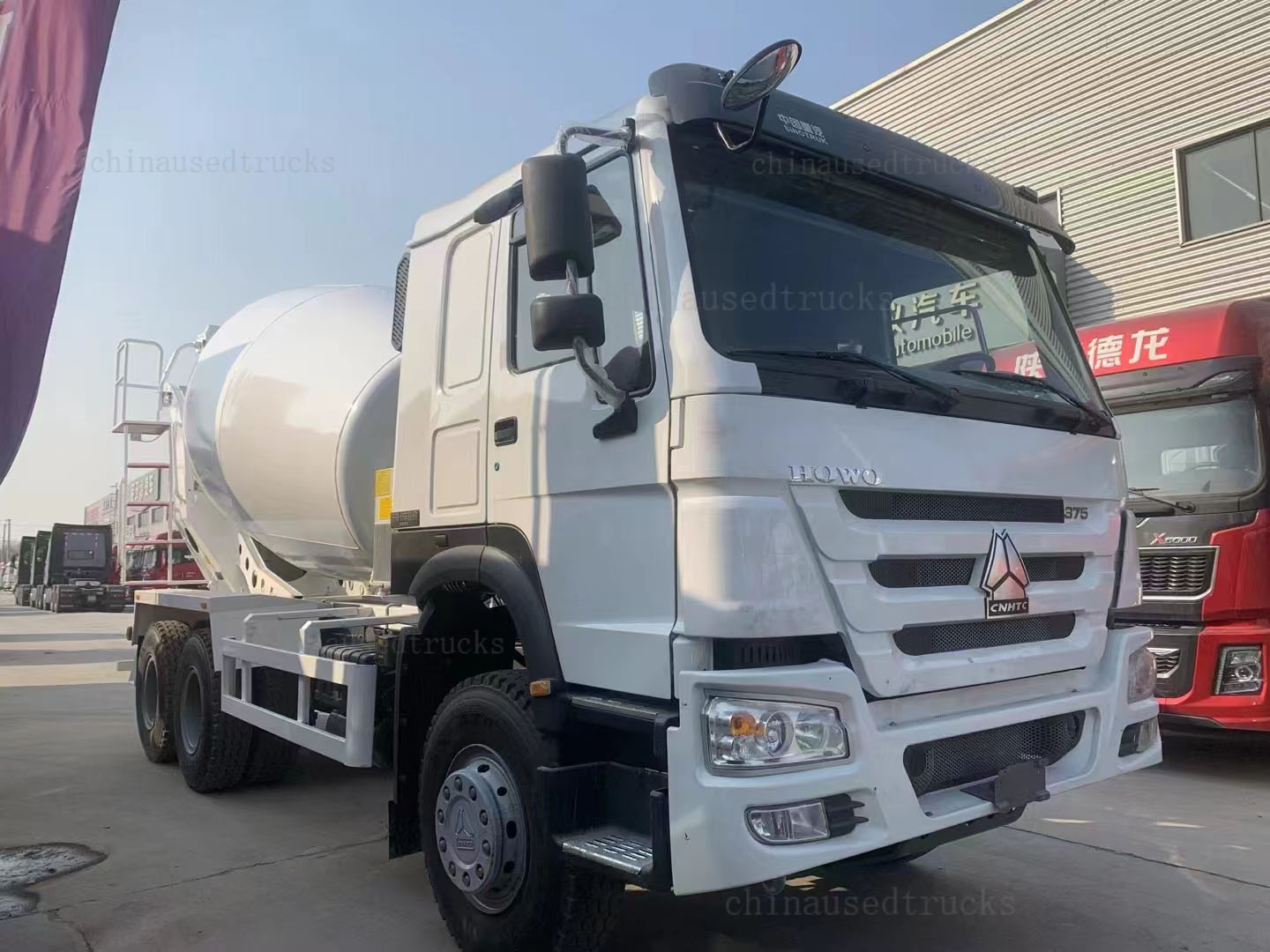

Used Mixer Truck
Engine | Model | WD615.69 |
Max.power | 247kw | |
Displacement | 9.726L | |
Overall Parameter | Model | G08K |
Curb weight | 14000kg | |
Max.total weight | 25000kg | |
Outline dimension | 8935×2500×3890mm | |
Chassis | Chassis brand | ZZ1257N3641W |
Chassis model | LHD | |
Steering position | 6×4 | |
Driving type | 3625+1350 | |
Wheel base | ||
Tire | 10.00R20 | |
Power take-off | Flywheel | |
Drum system | Geometric volume | 13.6m³ |
Agitating volume | 8m³ | |
Max.diameter of drum | 2280mm | |
Mixing drum length | 4795mm | |
Slanting angle | 15° | |
Rotating speed | 0~14r/min | |
Feeding speed | ≥3m³/min | |
Discharge speed | ≥2m³/min | |
Discharge residual rate | <0.4% | |
Slump scope | 50~210mm |
